Description

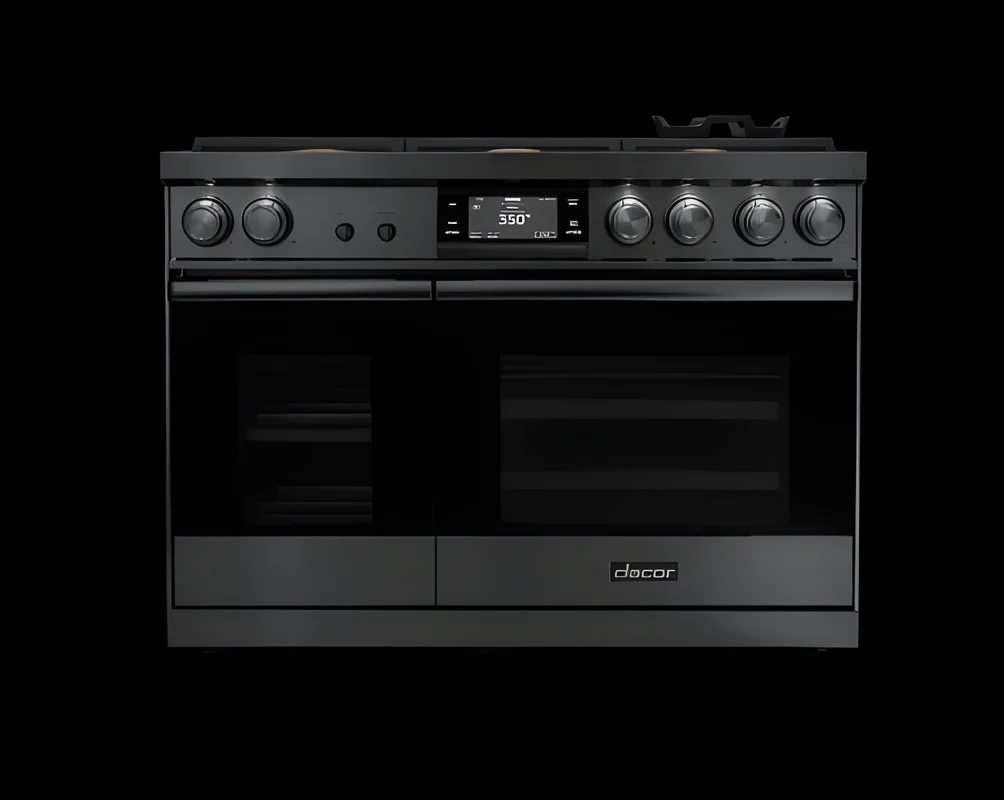

DACOR 48″ Range, Graphite Stainless Steel, Natural Gas & Liquid Propane – DOP48C86DLM-KT
Transform the way you cook with innovations like steam-roasting and steam-baking, speed convection, a built-in Wi-Fi-enabled LCD touchscreen, and the power of 22K BTU dual-stack sealed brass burners. Designed to inspire the imagination and make every meal an encore performance.
Features
- WI-FI-ENABLED 7 INCH LCD CONTROL PANEL
- REALSTEAM OVEN
- CHEF MODE
- DUAL FOUR-PART PURE CONVECTION
- SIMMERSEAR BURNERS
- ILLUMINA KNOBS
- LUXURIOUS FINISHES
- SMARTTHINGS INTEGRATION
Specifications
| OVERALL DIMENSIONS | Width : 47-7/8″ Height : 36-1/8″ Depth : 27-1/2″ Please refer to the Installation Instructions for more detailed dimensions. |
|---|---|
| BURNER CONFIGURATION | Left Front : 22,000 BTU Left Rear : 16,000 BTU Center Front : 16,000 BTU Center Rear : 16,000 BTU Right Front : 22,000 BTU Right Rear : 9,000 BTU |
| INTERIOR CAPACITY | Right Oven : 4.8 ft. Left Oven : 1.8 ft. |
| REQUIREMENTS | Electrical: 240V / 208V, 60Hz, 50A |
| ACCESSORIES | ARG48 : Modernist Griddle, 48″ 6-Burner Range |
| CONFIGURATIONS | DOP48C86DLS/DA : 48″ Range, Stainless Steel, Natural Gas & Liquid Propane DOP48C86DLM/DA : 48″ Range, Graphite Stainless Steel, Natural Gas & Liquid Propane |
Manual
- Dacor Chef Recipes (.pdf)
What Our Experts Think
- Professional Cooking Power – Features a 22K BTU burner and a versatile six-burner configuration for all your cooking needs.
- Graphite Stainless Steel Finish – A striking, modern aesthetic that complements luxury kitchens with ease.
- Dual Fuel Technology – Combines the precision of gas cooking with the consistent results of an electric oven for ultimate flexibility.
- Large Oven Capacity – A 5.7 cu. ft. oven to handle big meals and multiple dishes at once.
- Illumina Knobs – LED-lit knobs for enhanced safety and style, ensuring precision control.
- Infrared Broiler – Guarantees even, high-heat broiling for professional-grade results.
Q&A
Q: What is the DACOR 48″ Range in Graphite Stainless Steel?
A: The DACOR DOP48C86DLM-KT is a 48″ range in sleek graphite stainless steel, designed for both natural gas and liquid propane use, combining professional performance with a sophisticated look.
Q: What is the BTU output?
A: The range offers burners with up to 22,000 BTU, ideal for high-heat cooking such as stir-frying and boiling.
Q: Does it have a convection oven?
A: Yes, the range includes a true convection oven, ensuring even heat for baking, roasting, and broiling.
Q: Is this range compatible with both natural gas and liquid propane?
A: Yes, it can be used with either natural gas or liquid propane, offering flexibility for different fuel types.
Q: What are the dimensions?
A: Approx. 47.9″ W x 29.9″ D x 36″ H.
Maintenance Tips
- Clean Burners & Grates – Regularly clean burners and grates with warm, soapy water to avoid grease buildup.
- Wipe Exterior – Use a microfiber cloth and stainless steel cleaner to keep the graphite stainless steel surface streak-free.
- Inspect Gas Connections – Periodically check gas lines for leaks and wear to ensure safety.
- Check Flame Color – Ensure burner flames are blue for best performance. Yellow or orange flames may require cleaning or adjustment.
- Clean Oven Interior – Wipe down the oven after use to prevent grease and food buildup. For deeper cleaning, use a mild cleaner.
- Inspect Door Seal – Examine the door gasket for wear and tear to maintain heat efficiency.
- Maintain Ventilation – Regularly clean the range hood and ventilation system to ensure optimal airflow.
