Description

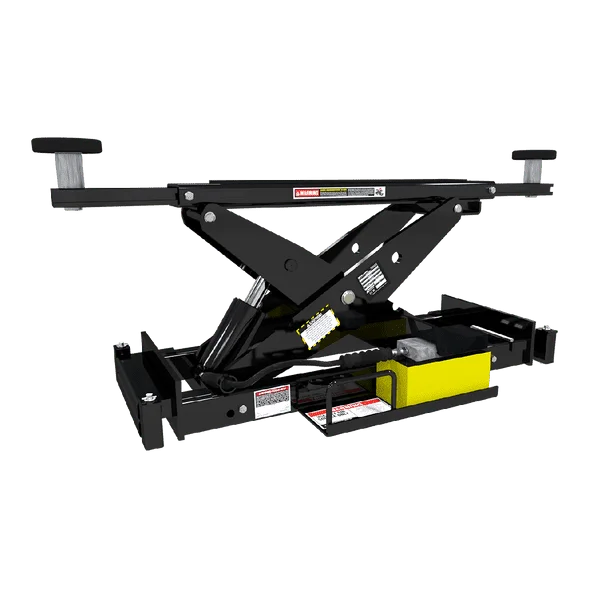

Dannmar Dj-4500 4,500-Lbs. Capacity Rolling Bridge Jack – 5175327
If you will be adding the D4-9 lift in your shop, we’d recommend a pair of DJ-4500 rolling bridge jacks to raise both the front and the rear of vehicles you are repairing. This gives you the versatility to perform your job on a variety of vehicles under many circumstances. The DJ-4500 rolling-bridge jack teamed with Dannmar’s D4-9, 4-post lift is one of Dannmar’s most popular packages. And the D4-9, 4-post lift with its optional caster kit is the lift that many repair centers prefer. That’s because it allows technicians to easily move it in their shop. These products teamed up will enhance your shop’s versatility and make your job easier by giving you more ability to move. The Dannmar rolling bridge jack incorporates several features for enhanced use and lifting.
Features
-
4,500-lb. lifting capacity
-
Rubber contact pads
-
Stackable adapters to maximize arm reach
-
High-pressure commercial air-hydraulic power unit; foot operated
-
Optional air-line kit
Specifications
| SKU | 5175327 |
|---|---|
| Lifting Capacity | 4,500 lbs. (2,041 kg) |
| Max. Height + Pad Only | 14.5” (368 mm) |
| Max. Height + Pad + Adapter | 18” (457 mm) |
| Min. Height + Pad Only | 4.5” (114 mm) |
| Min. Height + Pad + Adapter | 8” (203 mm) |
| Support Arm Width | 36” (914 mm) – 47” (1,194 mm) |
| Max. Arm Reach | 57” (1,448 mm) |
| Min. Arm Reach | 42” (1,067 mm) |
| Motor | Air-Hydraulic Pump |
| Noise | 45 dB |
| Lifting Time | 45 seconds |
Reviews
There are no reviews yet.
