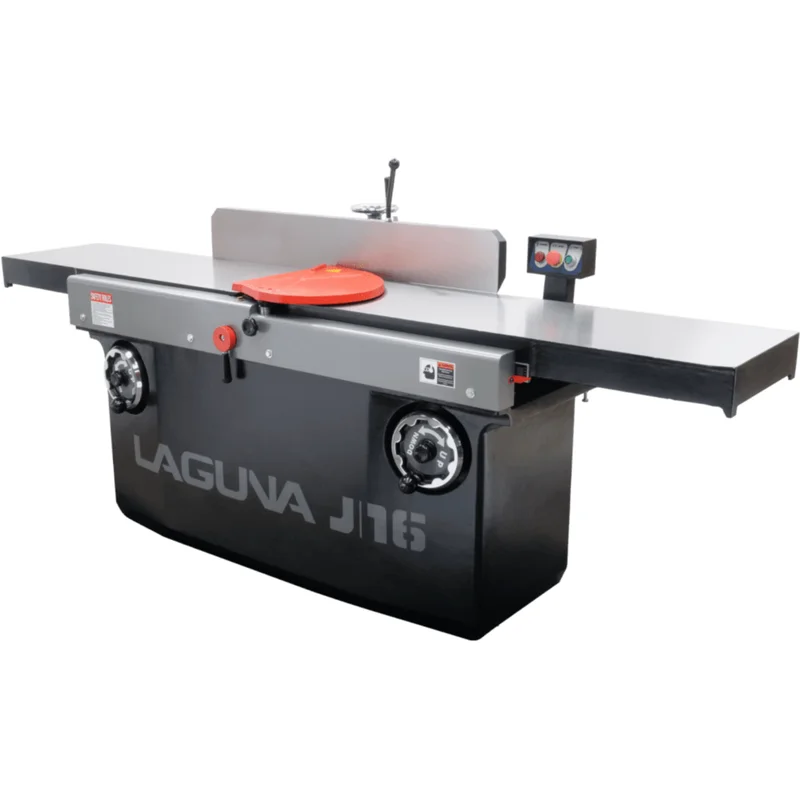

Laguna Tools Industrial Jointer, 16″ J|16 – MJO6405-5HP-1PH-0800 16″ Jointer HD 1PH
The J|16 Jointer is the true heavyweight of jointers. Our 16? version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements.
Features
- 98″ Table Length
- 16″ Jointer Width
- 31-1/2″ Table Height
Specifications
Parallelogram Adjustments
- Jointer Fence Tilt: 90-45 Degrees
- Motor: 5HP, 220V, 1 Phase/5HP,220V, 3 Phase
- Cutterhead Speed: 5000 RPM
- Cutterhead Diameter: 110mm
- Cutterhead: Laguna ShearTec I
- Cast Iron Body
- Over Head Controls
- Rack & Pinion Fence
- Weight: 1685 lbs
Manual
- J12 – J16 Manual
Video
What Our Experts Think
-
Robust industrial design: 16″ width and over 8 ft long cast-iron tables provide serious capacity and rigidity for heavy shop use.
-
Precision cutterhead: Features a ShearTec cutterhead with carbide insert knives, enabling cleaner cuts and longer tool life.
-
Smooth fence & adjustment system: Heavy-duty rack & pinion fence with parallelogram table adjustment offers accurate and repeatable setup.
-
High-performance motor: 5 HP single-phase drive gives strong cutting capability while remaining accessible for most shop power.
-
Professional workflow ready: Large tables, overhead control panel and sound build quality mean this machine is designed for steady production.
Q&A
Q: What width of material can it handle?
A: Up to 16″ width capacity, designed for wide stock and large panels.
Q: How long are the tables?
A: Approximately 98″ long cast-iron tables support extended workpieces.
Q: What motor and phase does this model use?
A: 5 HP single-phase configuration (with options for other configurations).
Q: What cutterhead speed and diameter?
A: Cutterhead runs at ~5000 RPM, with roughly 110 mm (≈4.33″) diameter insert type.
Q: What tilt or fence adjustment does it provide?
A: Fence tilts from 90° to 45°, enabling angled work and flexible jointing setups.
Maintenance Tips
-
Clean tables & cutterhead area regularly: Wipe off dust, chips and resin after each use to maintain smooth feed and flat surfaces.
-
Check insert knives: Inspect carbide bits for wear or chipping and rotate or replace before finish quality suffers.
-
Lubricate adjustment mechanisms: Apply light oil or grease to parallelogram screws, hand-wheels, and fence shaft for smooth motion.
-
Verify table alignment & fence accuracy: Periodically check that in-feed and out-feed tables are flush and that the fence is square for consistent jointing.
-
Maintain dust extraction & guards: Ensure the dust port remains clear and safety guards are functioning—good extraction reduces wear and improves shop air quality.
