M20 EBIKE-Schneller Versand

Description

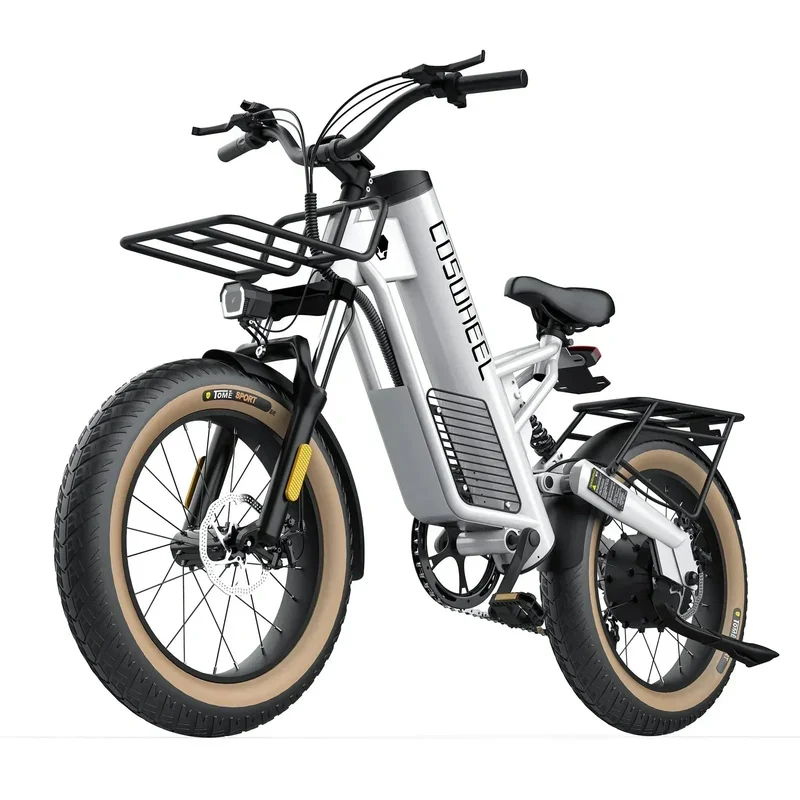

M20 EBIKE

Performance

• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52+miles (84km) in Class-1 PAS (pedal assist)
• Motor: 48V Peak 1000W (Rated 500W) Brushless Rear Hub Motor 50N.m
• Battery: 48V 15Ah Battery (Lithium 18650 Cells)
• Energy: 720Wh
• Front Suspension: 20″ Shoulder Shock Absorbing, 80mm Travel
• Brakes: Line Brake, Equipped with 160mm Stainless Brake Disc
• Tires: Road Tire 20″*4″
• Throttle: Grip Twist Throttle

Electronics

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours
• Display: Easy Read LCD Display
• Controller: 48V 22A
• Front Light: LED
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor

Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 „*3/32″*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2″ * 3/32″
• Handlebars: Bend Handlebar

Geometry

• Suitable Height: 5’1″ – 6’8″
• Seat Height: 33.9″ (86cm)
• Bike Height: 41.3″ (105cm)
• Wheelbase: 43.3″ (110cm)
• Handlebar Width: 29.1″ (74cm)
• Bike Weight: ≥71lbs (with Battery) (≥32kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 64.2″ * 29.1″ *41.3″ (163*74*105cm)
• Package Size: 55.1″ * 12.6″ * 31.5″ (140*32*80cm)
