Description

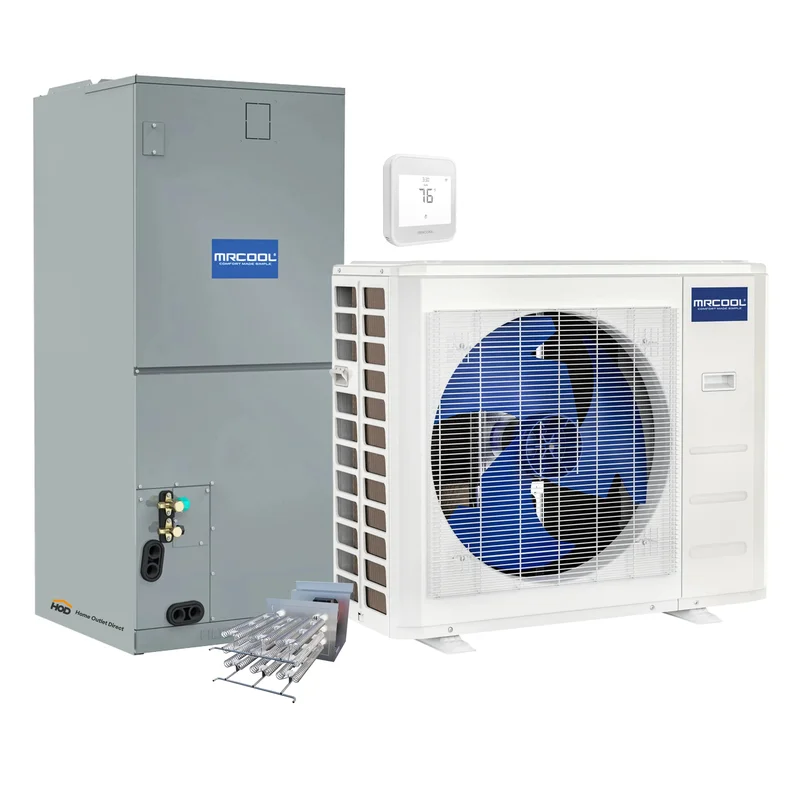

MRCOOL VersaPro 2nd Gen Central Split System with 24K BTU, 2 Ton, 18.1 SEER2, Heat Pump Condenser and Ducted Air Handler with 15kW Heat Kit – MVP24HP2A00OH15
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton, 18.1 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler
-
MRCOOL 15kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton, 18.1 SEER2 Central Ducted Heat Pump Condenser (MVP-24-HP-C-230A00-O)
-
2 Ton
-
SEER2 rating of 18.1 and an HSPF4 rating of 9.7
-
R-454B refrigerant
-
10-year warranty on the compressor and parts
2. MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler (MVP-24-HP-MUAH-230A00-O)
-
2 Ton
-
SEER2 rating of up to 18.3
-
R-454B refrigerant
-
10-year warranty
-
Flexible installation options, including upflow, downflow, and horizontal left or right configurations
3. MRCOOL 15kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit (MVPHK15)
-
Compatible with the following air handlers: MVP-24-HP-MUAH-230A00-O, MVP-30-HP-MUAH-230A00-O, MVP-36-HP-MUAH-230A00-O, MVP-48-HP-MUAH-230A00-O, MVP-60-HP-MUAH-230A00-O
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 13.46″ D x 26.5″ H x 35.04″ W |
| SEER2 | 18.1 |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 26000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 17.52″ D x 45″ H x 21.02″ W |
| Tonnage | 2 |
| Cooling Capacity (BTU) | 24000 |
| Heating Capacity (BTU) | 26000 |
| Voltage (V) | 115/208-230 |
| Heat Kit | |
| Gross Dimensions | 14.5″ D x 24″ H x 10.25″ W |
| Gross Weight | 15 Lbs |
What our Experts Think
-
Compact Yet Powerful – 24,000 BTU (2 Ton) system efficiently heats and cools small to medium-sized homes.
-
High Efficiency – 18.1 SEER2 rating reduces energy consumption while maintaining optimal performance.
-
Robust Electric Backup – 15kW heat kit provides reliable supplemental heating in colder climates.
-
Ducted Air Handler – Integrates seamlessly with existing ductwork for whole-home comfort.
-
Durable & Quiet – 2nd Gen design ensures long-lasting, smooth, and quiet operation.
Q&A
Q: What is included in this MRCOOL VersaPro 2nd Gen system?
A: It comes with a 24,000 BTU (2 ton) heat pump condenser, ducted air handler, and a 15kW electric heat kit for supplemental heating in colder climates.
Q: How energy efficient is the system?
A: With an 18.1 SEER2 rating, it provides high-efficiency cooling while reducing energy costs.
Q: Can it provide both heating and cooling?
A: Yes, the heat pump condenser provides year-round heating and cooling, with the 15kW heat kit offering additional heat when needed.
Q: What size area can it cover?
A: Ideal for homes up to approximately 1,000–1,200 sq. ft., depending on insulation and climate.
Q: Is it compatible with existing ductwork?
A: Yes, the ducted air handler integrates with standard HVAC duct systems for easy installation.
Q: Who should choose this system?
A: Homeowners seeking a compact, energy-efficient central HVAC solution with powerful supplemental heating for cold climates.
Maintenance Tips
-
Air Filter Care: Replace or clean indoor filters every 1–3 months to maintain airflow and efficiency.
-
Outdoor Unit Maintenance: Keep the condenser clear of debris, leaves, and obstructions.
-
Ductwork Inspection: Seal leaks and clean ducts for uniform air distribution.
-
Condensate Drain: Check and clear drain lines regularly to prevent water buildup.
-
Coil Cleaning: Schedule annual cleaning of evaporator and condenser coils for peak performance.
-
Heat Kit Check: Inspect the 15kW electric heat kit for proper operation and secure connections.
-
Professional Service: Arrange annual inspections to maximize SEER2 efficiency and extend system lifespan.
