Description

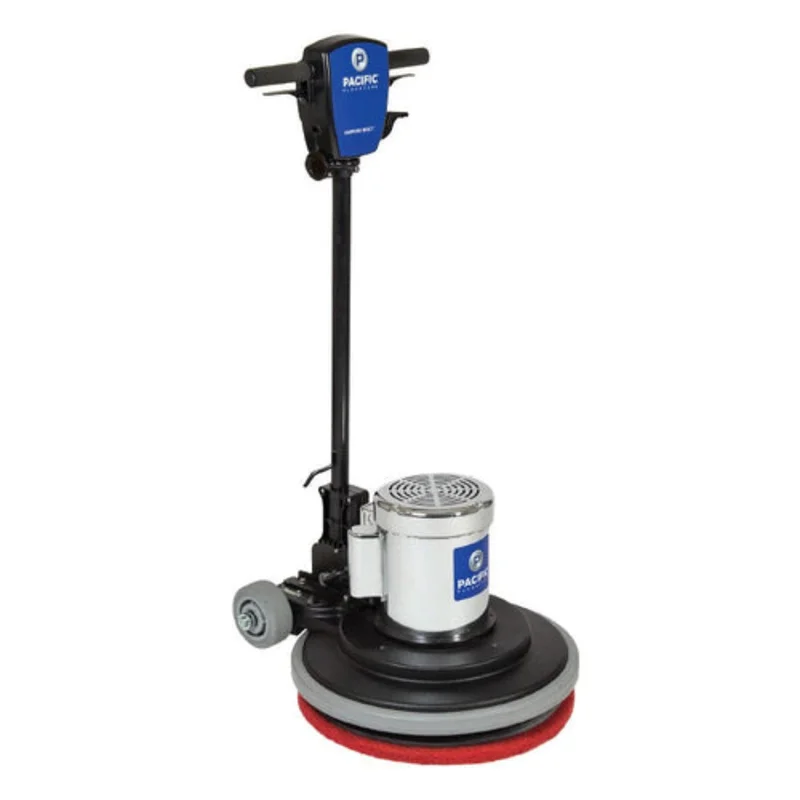

Pacific Floorcare FM-17EHD (Extra Heavy Duty) Floor Buffer, Scrubber & Concrete Grinder – PAC-535457
This Pacific Floorcare FM-17EHD (Extra Heavy Duty) floor buffer can do everything from scrub, strip & polish a floor to grind, sand & scarify them. Equipped with fully sealed 1.5 horsepower motor, this floor buffer was built to handle the tough jobs associated with concrete, stone & wood floor maintenance. An external fan helps to cool the machine it as it works. The complete enclosure ensures that no dust, from grinding or sanding, will enter the motor enclosure. This helps to ensure long life of the motor. This heavy duty workhorse comes backed by a 10 year warranty on the base, 3 years on the components, and 1 year on labor.
The triple planetary transmission provides a smooth power transfer from the motor to the pad driver. This ensures a smooth sanding, grinding or scarifying experience. This machine is built to take on the „tough stuff“ other machines can’t touch!
When ordering this floor buffer, please don’t forget to take a look at the polishing, scrubbing, stripping, & steel wool floor pads, as well as our full selection of floor sanding screens.
If this unit is not what you’re looking for, please feel free to take a look at our full line of floor buffers for other options.
Features
- Comes with Pad driver and 40 lbs weights.
- Totally enclosed motor & external cooling fan make sure no dust or debris can pass through the motor, increasing motor life.
- Severe duty triple planetary brush drive is specifically designed to handle the rigors of heavy loading encountered in severe duty applications.
- Gearbox includes; 11:1 ratio for maximum torque, 3 steel heat-treated planetary gears, dual hardened torque pins, & 6 oversized M6 motor mount screws.
- All steel coupler configuration (instead of rubber/steel combination) located inside gearbox resists shearing and is suited for rigid applications, such as scarifying.
- Electrical box contains the electronic start switch and capacitor.
- 10 year warranty on the base, 3 years on components & 1 year on labor.
Specifications
| Brand | Pacific Floorcare |
|---|---|
| Manufacturer SKU | 89540 |
| Airflow (CFM) | 68 |
| Battery | (4) 260 Ah Wet, 260 AH lead acid batteries |
| Brush Size | 28 inches |
| Brush/Pad Pressure | 90 lbs., 120 lbs., 150 lbs., 180 lbs., 210 lbs. |
| Cleaning Rate Per Hour | 25,566 sq. ft. |
| Cleaning Width | 28 inches |
| Color | Black / Blue |
| Construction | Rotationally-molded polyethylene tanks, powder-coated steel frame |
| Country of Manufacture | United States |
| Drive Motor | 1.13 HP |
| Drive System | Traction Drive |
| Flow Control | .01–.8 gpm, 5 Variable Control Settings |
| Includes | Pad driver(s), batteries, and on-board charger |
| Max Speed | 3.5 MPH |
| Noise Level (dB) | 65 |
| Operating Weight | 920 lbs (with batteries) |
| Packaged Weight | 970 lbs |
| Power Source | Battery |
| Product Type | Hard Floor Cleaning Machines |
| Recovery Tank Capacity | 32 gallons |
| Run Time | 3.0 hours (Disc), 3.5 hours (Orbital) |
| Solution Capacity | 30 gallons |
| Vacuum Motor | 0.76 HP (3-Stage) |
| Warranty | Tanks – , Parts – , Labor – 1 year from an authorized service center |
| Water Lift | 71″ |
| Dimensions | 60″ L x 27″ W x 52″ H |
| Associated ERP SKU | PAC-895406, PAC-895405 |
Chemical Recommendations
| Light Duty | ‚Neutral Clean‘ is a highly concentrated neutral pH cleaner that can be used on surfaces not harmed by water. Cuts through dirt, soap scum, grime & more without the need for harsh chemicals. | $31.99 | |
|---|---|---|---|
| Light Duty w/ Scent |
‚Magnifico‘ is a concentrated neutral pH cleaner that cleans & deodorize in one step. For use on any surface. Cuts through dirt, soap scum, grime & more. Leaves behind a fresh lavender fragrance. | $27.99 | |
| Medium Duty | ‚Low Foam‘ is a highly concentrated medium duty cleaner that removes carbon, grease, oil, dirt & more from washable surfaces. Controls foam in your machine to ensure optimal performance. | $37.99 | |
| Heavy Duty | ‚Eliminator‘ is a concentrated heavy duty detergent & solvent based cleaning solution. It removes heavy deposits of grease, baked-on carbon, soot, gums, oils, soap scum & more. | $32.99 |
Documents
Product Manual Pacific Floorcare FM-17EHD & FM-20EHDfloor buffer manual
Related Links
Related Blogs Choosing a Floor Buffer – Buyer’s Guide Buffer vs. Burnisher: Which is the Machine You Need for Your Job?Related Pages Stripping a Floor Floor Pad Guide Spray Buffing a Floor Scrubbing with a Floor Buffer
What our Experts Think
-
3-in-1 Versatility: Functions as a floor buffer, scrubber, and concrete grinder—ideal for multi-surface jobs.
-
Extra Heavy Duty Build: Engineered for intense commercial and industrial use, including concrete prep.
-
Powerful Torque & Stability: High-performance motor delivers steady, reliable power for tough applications.
-
17” Precision Control: Perfect size for maneuverability without compromising on cleaning power.
-
Built to Last: All-metal construction and rugged components ensure maximum durability and ROI.
Q&A
Q: What functions does the FM-17EHD perform?
A: It’s a 3-in-1 machine—designed for floor buffing, scrubbing, and concrete grinding.
Q: What is the cleaning/grinding path size?
A: The FM-17EHD features a 17-inch working path for powerful, controlled performance.
Q: What makes it “extra heavy duty”?
A: Built with a high-torque motor, steel frame, and reinforced components for demanding jobs.
Q: Can it be used on concrete?
A: Yes, it’s ideal for grinding and prepping concrete floors as well as cleaning hard surfaces.
Q: Is it suited for commercial or industrial use?
A: Absolutely—perfect for contractors, warehouses, and facilities needing tough, versatile floor care.
Q: Does it include pad or brush drivers?
A: Yes, it comes equipped with pad drivers for immediate use.
Maintenance Tips
-
Clean After Use: Wipe down the machine and cord after each use. Remove and clean pads or brushes thoroughly before storage.
-
Motor Care: The motor is permanently lubricated, but keep it clean—blow out dust with compressed air regularly, especially in dusty environments or after heavy use.
-
Inspect Power Cord: Check the power cord for cuts, nicks, or exposed wires before and after each use. Replace immediately if damaged.
-
Adjust Handle Properly: Use the handle adjustment lever to set it at a comfortable working angle. Always ensure the machine is stable before adjusting.
-
Safe Storage: Store indoors in a dry place. Keep the handle folded down and cord neatly wrapped to prevent tripping or damage.
